D9865 Technical Details

Rainier D9865 Receiver Technical Information

Cisco PowerVu HD / SD C - Ku Band Subscription Receiver
The D9865H & B for our service.

Rainier Satellite is proud to announce the Future for Direct to Home Satellite TV. The New C Band HD Receiver designed for use on our C band PowerVu subscription platform built by Cisco. Our Receiver offers True Master HD Picture Quality. It has a built in integrated PowerVu decoder, and specifically customized for us to decode the Pure HD subscription programming we are offering. It is built with the same high quality standards of all of Cisco's commercial products. Cisco Systems is a leader in broadcast and cable technology products, a name you can trust.

All receivers are brand new and shipped directly from Cisco to Rainier Satellite, then to our subscribers. They carry a full warranty with Cisco with an optional Cisco Smartnet for advanced support and replacement. Cisco's policy is between Cisco and Rainier Satellite. Secondary market aka pre-owned unlicensed equipment cannot be used or activated on the Rainier Satellite platform, as per Cisco's policies.

Introducing the Cisco Rainier D9865 Commercial-Quality Satellite Receiver.

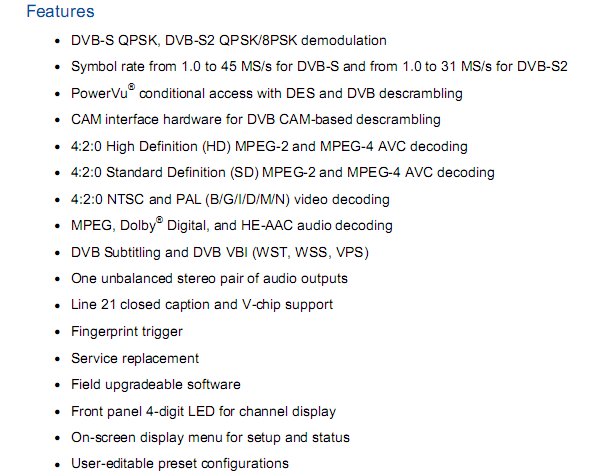

Facts and Information about the D9865 Rainier Receiver.

  • It receives Rainier's SD & HD Subscription PowerVu Programming.
  • It receives SD & HD Freeview FTA channels available.
  • It has HDMI, Component, Composite, SPDIF, and RCA audio outputs, 9865H model.
  • It receives all DVB S, S2, 8PSK, Mpeg 2 & 4 SD and HD channels.
  • It receives FTA and Conditional Access Subscription channels.
  • It is built by Cisco for us using Broadcast Commercial Quality Standards.
  • It provides Extremely High Quality Video and Audio.
  • It is a stand alone IRD that requires an external dish mover (available from us)
  • Future add on accessories for our other Platforms will be available for it.

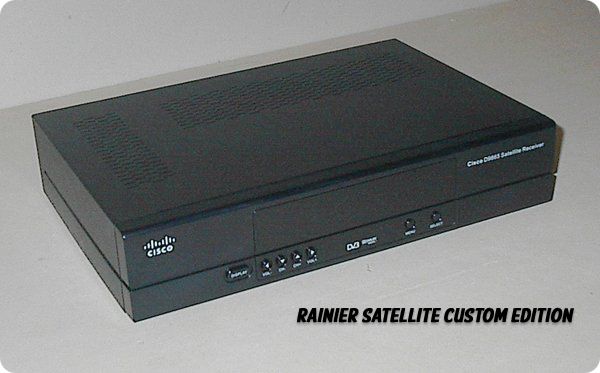

Front Panel.

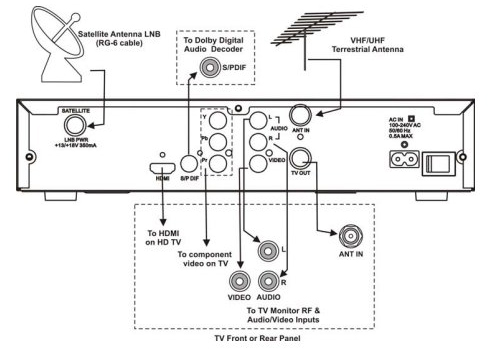

Connecting the Receiver D9865H shown.

Dish Size, LNB Requirements.

To insure proper performance on DVB S2 HD 8PSK signals, a well aligned 7.5 foot or larger C band dish is recommended. Dishes smaller than 7.5 feet may have reception issues with some signals. 6 foot or smaller dishes will not work, right. A PLL (phase lock loop) LNB will always provide the best performance, please use them especially on dishes smaller than 10 foot. LNBF's are not recommended. Make sure your dish and feedhorn are properly aligned and tweaked on the satellite arc for maximum efficiency. Please upgrade your satellite system if needed to avoid unnecessary problems.

LNB Requirements for DVB and DVB S2, PLL Recommended.

Remote, Quick Look.

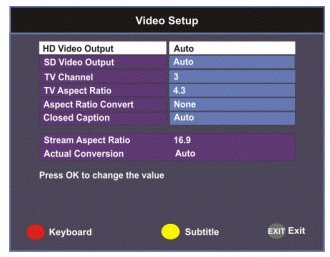

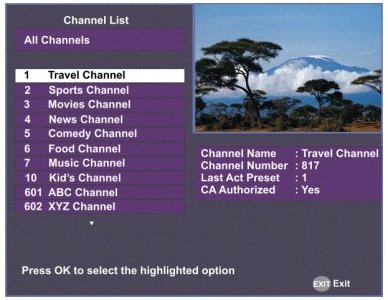

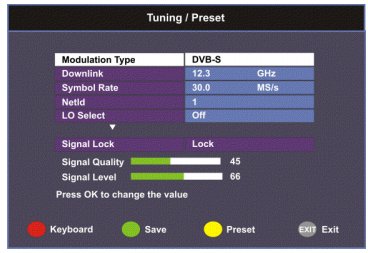

Receiver Menus, Quick Look.
