Titanium Satellite ASC-1 DiSEqC Positioner Polarity Controller
 |
SALE PRICE! $335.95 |
Currently Unavailable
Last one sold on: 06-13-2023
Don't Despair Check out our other positioners
IN STOCK HERE
 |
 |
| THESE IN STOCK ORDER TODAY! |
|
Manufacturer Description:
The Titanium Satellite ASC-1 Positioner / Controller takes satellite dish positioning and polarity adjustment to a new level. The ASC1 allows automatic or manual dish positioning, polarization and skew offset adjustment under complete satellite receiver control for up to 99 satellites and memorizes these user settings using standard DiSEqC 1.2 protocol.
Any DVBS/S2 receiver will now be able to automatically position a BUD with a 24-36vdc actuator jack or HH motor and automatically switch polarities on a polarotor mechanical polarity system. Don't compromise your system perfomance by using a LNBF with a fixed polarity setting across the arc. Now you can now fine-tune the polarity skew setting for each satellite position and polarity to optimize reception of the weakest signals. Attenuate adjacent satellite or terrestrial interference and start receiving those challenging high FEC and difficult to receive 16 and 32 ASPK signals!
The ASC1 is the first consumer or commercial dish antenna positioner to control a polarotor (mechanical polarizer) and interface with any receiver using the standard DiSEqC 1.2 commands. The ASC1 not only reliably controls the positioner with an unmatched 36 Vdc at 5amps and ramps movement during start/stops to minimize wear and tear on the actuator and dish structure, but also positions and fine-tunes the motorized mechanical polarotor for polarity and skew offset control assigned to each satellite and polarity. The controller can be operated via the satellite receiver using standard DiSEqC 1.2 commands, 8 button remote control or front panel soft touch rubberized buttons to allow instant control of motor position, skew / position saving, recall and fine-tuning.
The multi-function, backlit front panel, four row, scrolling LCD screen indicates the satellite name, dish counter position, polarity skew, DiSEqC motor position assignment and direction of travel. The LNB voltage is user switchable to either allow 13/18vdc pass-through polarity switching control, reversed 18/13Vdc or a fixed 13dc or fixed 18vdc output at 450mA. Rear panel motor and sensor connections are heavy duty screw terminals capable of binding up to a 12 gauge wire. Count resolution support up to 50hz allows pinpoint accuracy on automatic dish positioning. The multi-tap high current transformer is rear panel switched to allow operation worldwide with any AC line voltage ranging between 90-240VAC @ 50/60hz.
An external RS-232 serial port allows for firmware updates and saving/editing/loading custom user settings via a PC. Titanium Satellite provides firmware upgrades to add new features, functions and regional satellite lists to simplify installation and configuration. These user database files can be downloaded, edited, archived or shared between units. A software loader / editor makes satellite positioning, naming and polarity assignments easy. No more conversion lists taped to the wall beside your TV as the ASC1 can display the current satellite name, not just a position number or extinct satellite name that failed years ago! No more hours of reprogramming a controller after a factory reset! Imagine the convenience of simply reloading your own customized satellite list and your system is automatically restored.
Seamlessly flip between channels and automatically scan multiple satellites and polarities without needing to use a old 4DTV or analog receiver to position the dish and change polarity. Blind scanning multiple satellites and polarities for new channels will be a breeze! Select the multiple satellite scan feature on your DVBS/S2 receiver and walk away!
| AC Voltage In |
115/230Vac, 50/60hz - User Setting |
| Current in Operation |
600 ～ 1200mA @ 115Vac
340 ～ 640mA @ 230Vac |
| Current in Standby |
270mA @ 115Vac / 120mA @ 220Vac |
| Input Protection |
2A @ 250Vac User Replaceable Fuse |
| Output Voltage M1 / M2 |
38Vdc (max) |
| Output Current M1 / M2 |
5A (max) |
| Dual Motor Relays |
10Amp @ 40Vdc (max) |
| IF In / Out Connectors |
F-type IEC169-24 Female Loop-Through |
| Output Voltage F-Fitting |
13Vdc/18Vdc Automatic or Fixed |
| Output Current F-Fitting |
450mA (max) |
| Over Current F-Fitting |
Thermal Protection w/Auto Reset |
| Motor Connections |
M+ / M- Screw Terminal 14 gauge |
| Sensor |
S+ / S- Screw Terminal 14 gauge |
| Servo |
Gnd / Pulse / +5Vdc Screw Terminal 14 gauge |
| RF Insertion Loss |
2.5dB |
| DiSEqC Control Amplitude |
0.8 ±0.2V (required input level) |
| DiSEqC 1.2 Positions |
99 |
| Positioner Count |
4999 |
| Sensor Resolution |
50hz |
| Skew Offset |
+/- 90° from Polarity Setting |
| RS-232 |
Transfer Rate 56Kbps, 9 pin Male D-Sub |
| LCD Operation/Programming |
4 Line Scrolling, Green Color Backlight |
| Front Panel Keys |
7 Keys: Power, OK, Lock (Keyboard/Remote)
(Dual Menu Nav) - East, West, Skew+, Skew- |
| Remote Control Keys |
19 Active Keys: Power, OK, East, West, Skew+,
Skew-, +, -, Previous, Home, Numeric (0-9) |
| Dimensions |
11 L x 9.5 D x 4.5 H in
280 L x 240 D x 115 H mm |
| Weight |
11.7 lbs / 5.3 KG |
|
 |
Currently Unavailable Last one sold on: 06-13-2023 |
| RAINIER SATELLITE UPGRADED VBOX-7 Extra Heavy Duty |
|
|
V-Box 7 DiSEqC Positioner/Controller
One Available. New Old Stock. Rainier Satellite Upgraded.
|
DISCOUNT PRICE! $229.95 |
Currently Unavailable
Last one sold on: 06-15-2023
Don't Despair Check out our other positioners
IN STOCK HERE
|
|
| THESE IN STOCK ORDER TODAY! |
|
|
This is a Rare One of a Kind Find. It's been upgraded by Rainiers skilled technicians with a Rainier Satellite Mighty Mini Heavy Duty Transformer and extra strong power supply capacitors. It moves up to 12 foot mesh dishes easily.
EXTRA HEAVY DUTY! Grab this One of a Kind Gem before it's Gone. |
About the VBOX-7:

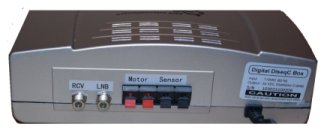

V-Box 7 Controller/Positioner w/Remote. Control your 36 volt actuator with your DiSEqC receiver using this device. Want to use a FTA receiver to move your Big C Band Dish? This is what you need. Compatible with DiSEqC 1.0/1.2, and with any Actuator. 99 Satellite positions. Fine Tune East/West buttons, Auto shut off function, short circuit overload protection and anti-noise design. 3 Digit LED.
Features:
*DiSEqC 1.0 / 1.2 Receivers Compatible
*Works with any Receiver via Remote Control
*Compatible with any Actuator using a reed or hall sensor
*99 Programmable Memories
*Easy Operation and Quick Installation
*Fine-tune Function for Better Reception
*Anti-Noise Circuit to avoid miscounting
*Short Circuit and Overload Protection
*Software Limits Protection
*Auto Turn-off Function
*Re-syncronize Function
|
TECH TIP
What is DiSEqC?
Its short for Digital Satellite Equipment Control a special communication protocol for use between a satellite receiver and a device such as a multi-dish switch or a small ku dish antenna rotor (Stab). DiSEqC was developed by European satellite provider Eutelsat.
FACT Is it needed with a big C band Dish?
Not Really. Some offshore FTA receivers claim to interface properly with its commands to move the dish with one remote control. Many times this information is incorrectly received and causes a host of problems. DISEqC protocol is sent using your coax cable. This will cause atttenuation to your signal and is not recommended by Rainier. You want maximum signal going to your receiver. The best way to move a big dish is to use a DISEqC mover in manual mode. Our Mighty Mini and our Primesat EZ 2000 Plus will achieve this with a simpler interface for less cost.
|
Specifications:
| Model |
Rainier Satellite V Box 7 EHD |
| Input Voltage |
110 VAC 60 Hz 13/18VDC (F type via Coaxial Cable) |
| Output Voltage |
13/18 VDC (F Type/According to input) 36 VDC via motor cable |
| Max Current |
3.5A Heavy Duty Upgraded |
| Position Memories |
99 |
| Max Power Consumption |
Standby 5W / Max 100W |
| Protocol |
DiSEqC 1.0/1.2 |
| Remote Control |
IR |
| Operating Temperature |
5°C to 40°C (41°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| |
|
Currently Unavailable Last one sold on: 06-15-2023 |
| VBOX 7 REMOTE CONTROL (RARE) |
 |
VBOX-7 Replacement / Second Remote Control
OEM Original Equipment
Warehouse Clearance!
ONLY $ 69.99
Plus Shipping.
|
EXTREMELY RARE YOU CAN NOT FIND THESE REMOTES ANYWHERE ELSE! New Old Stock DMS International original replacement VBOX-7 positioner IR remote. Ideal for replacement or second remote. Controls VBOX-7 positioner May work with other VBOX series positioners. Works with VBox 7, VBox 6, Moteck, and most older model V Box's. Make sure codebase is compatible with your VBOX manufacturer before making purchase. ALL SALES ARE FINAL - NO RETURNS.
IN STOCK
Order Yours Today.
VBOX-7 Second / Replacement Remote Order ITEM# RRVBOX7
|
